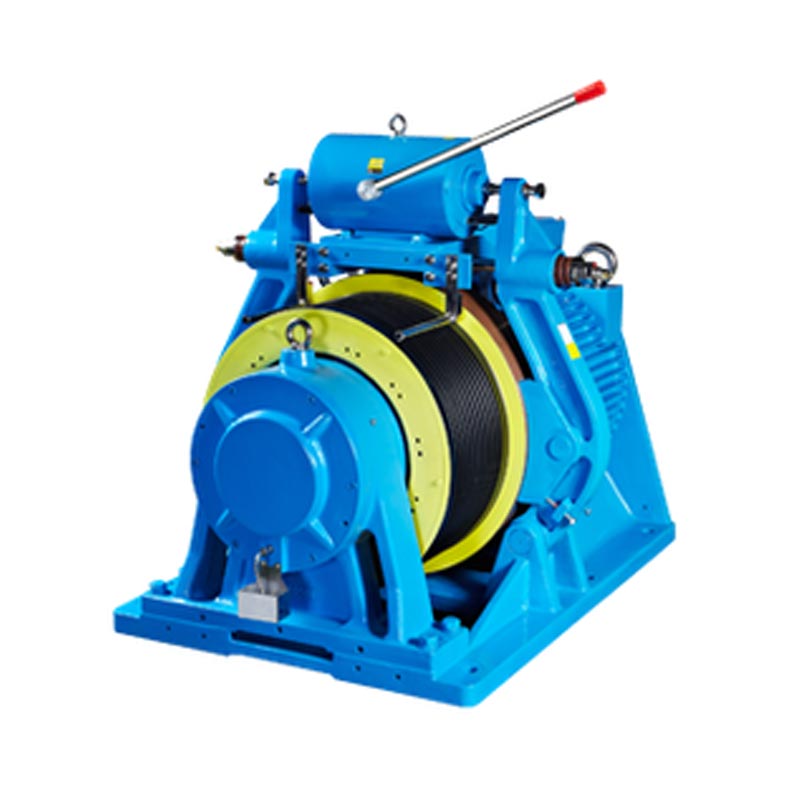

WTYF2/SWTYF2-SEERIA-TOUBELMÜHIS (SISEROOTOR)
| Mudel | Mahutavus kg |
Lifti kiirus m/s |
Nimiväljund KW |
Nimetatud vool A |
Nimikiirus p/min |
Sagedus Hz |
Keti läbimõõt mm |
poolakad 2p |
Pöördemoment Nm |
Köied | Groove Dist. mm |
Lõika nurk | Soone nurk | Roping | Võlli koormus kg |
Käepide ratas | Kaugvabastus | Inerts kg m^2 |
Kaal kg |
| WTYF2-1000-300 | 1000 | 3.0 | 20.8 | 44.0 | 220 | 36.7 | 520 | 20 | 899 | 4-Φ13 | 17 | β=0° | γ=25° | 2:1 | 12 000 | Y | N | 10.10 | 1050 |
| WTYF2-1000-350 | 3.5 | 24.2 | 51.0 | 257 | 42.8 | ||||||||||||||
| WTYF2-1000-400 | 4.0 | 27.7 | 60.0 | 294 | 49.0 | ||||||||||||||
| WTYF2-1150-300 | 1150 | 3.0 | 23.9 | 51.0 | 220 | 36.7 | 520 | 20 | 1034 | 4-Φ13 | 17 | β=0° | γ=25° | 2:1 | 12 000 | Y | N | 10.10 | 1050 |
| WTYF2-1150-350 | 3.5 | 27.8 | 58.0 | 257 | 42.8 | ||||||||||||||
| WTYF2-1150-400 | 4.0 | 31.8 | 66.0 | 294 | 49.0 | ||||||||||||||
| WTYF2-1250-300 | 1250 | 3.0 | 25.9 | 56.0 | 220 | 36.7 | 520 | 20 | 1124 | 4-Φ13 | 17 | β=0° | γ=25° | 2:1 | 12 000 | Y | N | 10.90 | 1150 |
| WTYF2-1250-350 | 3.5 | 30.3 | 64.0 | 257 | 42.8 | ||||||||||||||
| WTYF2-1250-400 | 4.0 | 34.6 | 73.0 | 294 | 49.0 | ||||||||||||||
| WTYF2-1350-300 | 1350 | 3.0 | 28.0 | 60.0 | 220 | 36.7 | 520 | 20 | 1,214 | 4-Φ13 | 17 | β=0° | γ=25° | 2:1 | 12 000 | Y | N | 10.90 | 1150 |
| WTYF2-1350-350 | 3.5 | 32.7 | 69.0 | 257 | 42.8 | ||||||||||||||
| WTYF2-1350-400 | 4.0 | 37.4 | 78.0 | 294 | 49.0 | ||||||||||||||
| WTYF2-1600-300 | 1600 | 3.0 | 33.2 | 70.0 | 220 | 36.7 | 520 | 20 | 1 439 | 4-Φ13 | 17 | β=0° | γ=25° | 2:1 | 12 000 | Y | N | 12.20 | 1250 |
| WTYF2-1600-350 | 3.5 | 38.7 | 80.0 | 257 | 42.8 | ||||||||||||||
| WTYF2-1600-400 | 4.0 | 44.3 | 92.0 | 294 | 49.0 |
Märkused:
1. Pidur on AC220V ja DC220V valikuline, muu piduripinge puhul konsulteerige inseneridega.
2. Vahelduvvoolupidur on varustatud kontrolleriga, astmelist trafot pole vaja. Alalisvoolupidur vajab kapis alandavat trafot, et tagada hoidepinge 50% kogumispingest.
WTYF2/SWTYF2-SERIA-TOPELTMÄHIS (SISEROOTOR)
| Mudel | Mahutavus kg |
Lifti kiirus m/s |
Nimiväljund KW |
Nimetatud vool A |
Nimikiirus p/min |
Sagedus Hz |
Keti läbimõõt mm |
poolakad 2p |
Pöördemoment Nm |
Köied | Groove Dist. mm |
Lõika nurk | Soone nurk | Roping | Võlli koormus kg |
Käepide ratas | Remooli vabastamine | Inerts kg m^2 |
Kaal kg |
| WTYF2-2000-300 | 2000 | 3.0 | 41.5 | 92 | 220 | 36.7 | 520 | 20 | 1799 | 6-Φ13 |
17 |
β=0° | γ=25° | 2:1 | 15 000 | N | N | 18.8 | 1550 |
| WTYF2-2000-350 | 3.5 | 48.4 | 106 | 257 | 42.9 | ||||||||||||||
| WTYF2-2000-400 | 4.0 | 55.3 | 121 | 294 | 49.0 | ||||||||||||||
| WTYF2-2500-300 | 2500 | 3.0 | 51.9 | 121 | 179 | 47.7 | 640 | 32 | 2767 | 5-Φ16 | 20 | β=0° | γ=25° | 2:1 | 20 000 | N | N | 29.5 | 2400 |
| WTYF2-2500-350 | 3.5 | 60.5 | 140 | 209 | 55.7 | ||||||||||||||
| WTYF2-2500-400 | 4.0 | 69.2 | 162 | 239 | 63.7 | ||||||||||||||
| WTYF2-3000-300 | 3000 | 3.0 | 62.3 | 145 | 179 | 47.7 | 640 | 32 | 3320 | 6-Φ16 | 20 | β=0° | γ=25° | 2:1 | 20 000 | N | N | 31 | 2480 |
| WTYF2-3000-350 | 3.5 | 72.6 | 170 | 209 | 55.7 | ||||||||||||||
| WTYF2-3000-400 | 4.0 | 83.0 | 195 | 239 | 63.7 | ||||||||||||||
| WTYF2-3600-300 | 3600 | 3.0 | 74.7 | 179 | 179 | 47.7 | 640 | 32 | 3985 | 6-Φ16 | 20 | β=0° | γ=25° | 2:1 | 20 000 | N | N | 34.1 | 2600 |
| WTYF2-3600-350 | 3.5 | 87.2 | 195 | 209 | 55.7 | ||||||||||||||
| WTYF2-3500-400 | 4.0 | 99.6 | 236 | 239 | 63.7 | ||||||||||||||
| WTYF2-4000-300 | 4000 | 3.0 | 76.1 | 178 | 179 | 47.7 | 640 | 32 | 4058 | 6-Φ16 | 20 | β=0° | γ=25° | 2:1 | 20 000 | N | N | 34.1 | 2600 |
| WTYF2-4000-350 | 3.5 | 88.8 | 208 | 209 | 55.7 | ||||||||||||||
| WTYF2-4000-400 | 4.0 | 101.5 | 240 | 239 | 63.7 | ||||||||||||||
| SWTYF2-1000-100 | 1000 | 3.0 | 19.6 | 56 | 110 | 18.4 | 520 | 20 | 1699 | 6-Φ13 | 17 | β=0° | γ=25° | 1:1 | 15 000 | N | N |
18.8 |
1550 |
| SWTYF2-1000-350 | 3.5 | 22.9 | 56 | 129 | 21.4 | ||||||||||||||
| SWTVF2-1000-400 | 4.0 | 26.1 | 64 | 147 | 24.5 | ||||||||||||||
| SWTYF2-1000-500 | 5.0 | 32.7 | 88 | 184 | 30.6 | ||||||||||||||
| SWTYF2-1000-600 | 6.0 | 39.2 | 88 | 220 | 36.7 | ||||||||||||||
| SWTYF2-1150-300 | 1150 | 3.0 | 22.5 | 64 | 110 | 18.4 | 520 | 20 | 1953 | 6-Φ13 | 17 | β=0° | γ=25° | 1:1 | 15 000 | N | N | 18.8 | 1550 |
| SWTYF2-1150-350 | 3.5 | 26.3 | 64 | 129 | 214 | ||||||||||||||
| SWTYF2-1150-400 | 4.0 | 30.1 | 74 | 147 | 24.5 | ||||||||||||||
| SWTYF2-1150-500 | 5.0 | 37.6 | 102 | 184 | 30.6 | ||||||||||||||
| SWTYF2-1150-600 | 6.0 | 45.1 | 102 | 220 | 36.7 | ||||||||||||||
| SWTYF2-1250-100 | 1250 | 3.0 | 24.5 | 70 | 110 | 18.4 | 520 | 20 | 2123 | 6-Φ18 | 7 | β=0° | γ=25° | 1:1 | 15 000 | N | N | 18.8 | 1550 |
| SWTYF2-1250-350 | 3.5 | 28.6 | 70 | 129 | 21.4 | ||||||||||||||
| SWTVF2-1250-400 | 4.0 | 32.7 | 80 | 147 | 24.5 | ||||||||||||||
| SWTYF2-1250-500 | 5.0 | 40.9 | 98 | 149 | 39.8 | 640 | 32 | 2613 | 5-Φ16 | 20 | 20 000 | 29.5 | 2400 | ||||||
| SWTYF2-1250-600 | 6.0 | 49.0 | 112 | 179 | 47.8 | ||||||||||||||
| SWTYF2-1350-300LS | 1350 | 3.0 | 26.5 | 64 | 90 | 23.9 | 640 | 32 | 2822 | 5-Φ16 | 20 | β=0° | γ=25° | 1:1 | 20 000 | N | N | 29.5 | 2400 |
| SWTYF2-1350-350LS | 3.5 | 30.9 | 76 | 104 | 27.9 | ||||||||||||||
| SWTYF2-1350-400LS | 4.0 | 35.3 | 86 | 119 | 31.8 | ||||||||||||||
| SWTYF2-1350-500 | 5.0 | 44.1 | 105 | 149 | 39.8 | ||||||||||||||
| SWTYF2-1350-600 | 6.0 | 52.9 | 120 | 179 | 47.8 | ||||||||||||||
| SWTYF2-1600-300 | 1600 | 3.0 | 31.4 | 75 | 90 | 23.9 | 640 | 32 | 3345 | 6-Φ16 | 20 | β=0° | γ=25° | 1:1 | 20 000 | N | N | 31 | 2480 |
| SWTYF2-1600-350 | 3.5 | 36.6 | 88 | 104 | 27.9 | ||||||||||||||
| SWTYF2-1600-400 | 4.0 | 41.8 | 100 | 119 | 31.8 | ||||||||||||||
| SWTYF2-1600-500 | 5.0 | 52.3 | 124 | 149 | 39.8 | ||||||||||||||
| SWTYF2-1600-600 | 6.0 | 62.7 | 146 | 179 | 47.8 | ||||||||||||||
| SWTYF2-1600-700 | 7.0 | 73.2 | 160 | 200 | 53.2 | 670 | 3502 | 30 000 | N | N | 37.8 | 3050 | |||||||
| SWTYF2-1600-800 | 8.0 | 83.7 | 180 | 228 | 60.8 | ||||||||||||||
| SWTYF2-2000-300 | 2000 | 3.0 | 39.2 | 90 | 86 | 22.8 | 670 | 32 | 4377 | 6-Φ16 | 20 | β=0° | γ=25° | 1:1 | 30 000 | N | N | 37.8 | 3050 |
| SWTYF2-2000-350 | 3.5 | 45.7 | 102 | 100 | 26.6 | ||||||||||||||
| SWTYF2-2000-403 | 4.0 | 52.3 | 120 | 114 | 30.4 | ||||||||||||||
| SWTYF2-2000-500 | 5.0 | 65.3 | 148 | 143 | 38.0 | ||||||||||||||
| SWTYF2-2000-500 | 6.0 | 78.4 | 180 | 171 | 45.6 | ||||||||||||||
| SWTYF2-2000-700 | 7.0 | 91.5 | 210 | 200 | 53.2 | ||||||||||||||
| SWTYF2-2000-800 | 8.0 | 104.5 | 235 | 228 | 60.8 |
WTYF2/SWTYF2 SERIA MASINAD
KONTROLLJOONISTE MÕÕTMED
| Mahutavus (kg) | Lifti kiirus (m/s) | Roping | D1 | D2 | D3 | D4 | D5 | OP | W1 | W2 | W3 | W4 | H1 | H2 | H3 | Φd2 |
| 2000 | 3,0-4,0 | 2:1 | 326.5 | 145 | 530 | 794.5 | 1000 | 520 | 450 | 670 | 750 | 965 | 1000 | 360 | 40 | 26 |
| 2500-4000 | 3,0-4,0 | 2:1 | 411.5 | 340 | 640 | 1200 | 1350 | 640 | 260 | 822 | 912 | 1130 | 1200 | 444 | 50 | 34 |
| 1000-1150 | 3,0-6,0 | 1:1 | 326.5 | 145 | 530 | 794.5 | 1000 | 520 | 450 | 670 | 750 | 965 | 1000 | 360 | 40 | 26 |
| 1250 | 3,0-4,0 | |||||||||||||||
| 1250 | 5,0-6,0 | 1:1 | 411.5 | 340 | 640 | 1200 | 1350 | 640 | 260 | 822 | 912 | 1130 | 1200 | 444 | 50 | 34 |
| 1350-1600 | 3,0-6,0 | |||||||||||||||
| 1600 | 7,0-8,0 | 1:1 | 427.5 | 450 | 670 | 1340 | 1600 | 670 | 286 | 870 | 965 | 1104 | 1210 | 454 | 50 | 34 |
| 2000 | 3,0-8,0 |
Märkused:
1.WTYF2-4000 seeria tasakaalu suhe on 0,45 ~ 0,5.
2. Vahelduvvoolupidur on varustatud kontrolleriga, astmelist trafot pole vaja. Alalisvoolupidur vajab kapis alandavat trafot, et tagada hoidepinge 50% kogumispingest.
WTYF2/SWTYF2 SERIA MASINAD
| Mahutavus | 1000-4000 kg |
| Roping | 2:1|1:1 |
| Alla lõigatud | U |
| Jalapadja lamedus | <0,5 mm |
| Kaitse reiting | IP40 |
| Isolatsiooniklass | F |
| Töötsükkel | S5-40% |
| Mootori nimipinge | AC380V |
| Pidur | Trumm |
| Valimis-/hoidmispinge | AC220/DC200V |
Täislaine alaldi jõuallikas pidurile
